Trusted Agent Identity: Identity Propagation in MuleSoft Agent Fabric

Reading Time: 27 minutes

This technical guidance details the implementation of secure identity propagation within MuleSoft Flex Gateway. It outlines the use of two specific OAuth 2.0 patterns:

OAuth 2.0 Token Exchange (RFC 8693): Used for service-to-service authentication
In-Task Authentication: Used for step-up authentication, integrating secondary identity providers

OAuth 2.0 Token Exchange and In-Task Authorization Code patterns

These patterns enable:

Gateway-enforced security: Authentication policies applied at the MuleSoft Flex Gateway layer without backend code changes
User context preservation: Original user identity Subject (sub) claim maintained across service boundaries
Least privilege access: Service-specific tokens with minimal required scopes
Step-up authentication: Multi-factor authentication (MFA) enforcement for high-risk operations

The challenge: Identity in multi-service architectures

Modern enterprise architectures including AI agent networks, MCP tools, microservices, and API ecosystems require secure identity propagation across service boundaries. Key challenges include:

Identity propagation: User identity must flow through multi-hop service calls (e.g. Frontend → Agent A → Agent B → API) while maintaining audit trails
Service isolation: Each service must receive tokens scoped to its specific permissions. A token for Service A should not grant access to Service B
Dynamic authentication strength: Low-risk operations may require basic authentication, while high-risk operations require MFA
Multi-IdP scenarios: Enterprise B2B and regulated industries often require authentication from multiple identity providers, such as corporate SSO for initial access, and banking IdP for transactions
Zero-trust architecture: Every service boundary requires independent token validation with no implicit trust
Regulatory compliance: Financial services, healthcare, and privacy regulations mandate specific authentication methods and audit trails

Where traditional approaches fail

Let’s take a look at reasons traditional approaches fail.

Passing user tokens directly (Security risk)

Violates least privilege: Token has audience (aud) claim containing all services, not just the one being called
No service isolation: Compromised Agent B can use token to access Agent C without additional authorization
Audit trail confusion: Cannot distinguish which service made which call; all appear to come from user
Token lifetime risk: Long-lived token increases exposure window if compromised
Privilege escalation: Any service with the token can access any other service in the audience list

Service accounts only (No user context)

Lost user context: Cannot determine which user initiated the request; sub (subject) claim is service account, not user
No audit trail: All requests appear to come from service account, violating regulatory requirements
Authorization failures: Cannot enforce user-specific permissions
Compliance violations: GDPR, HIPAA, SOX require user identity in audit logs
Security risk: Service account compromise affects all users

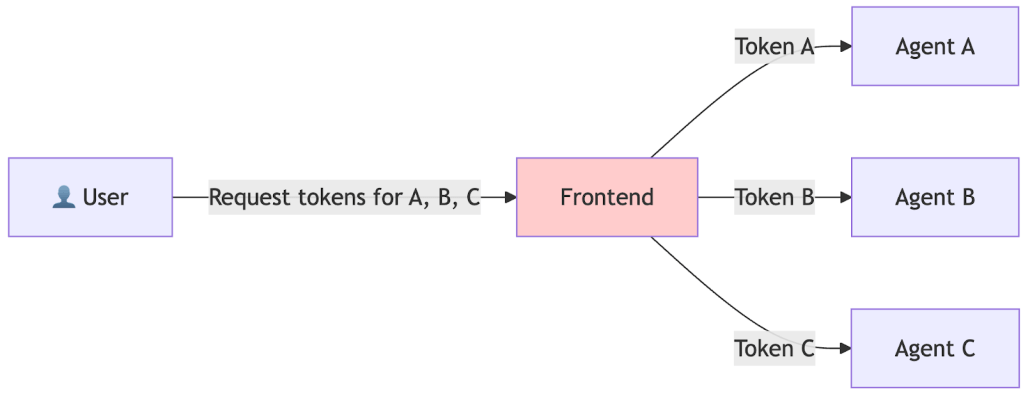

Frontend-managed token exchange

Increased attack surface: Frontend must manage multiple tokens in browser memory/storage
Complexity: Frontend must know entire service topology and request tokens for each
Latency: Multiple token requests to IdP before making actual API calls
Security risk: Tokens exposed in browser memory, vulnerable to XSS attacks
Scalability: Frontend logic changes every time service topology changes

Solutions for these approaches

MuleSoft Flex Gateway provides two policy-based authentication patterns: OAuth 2.0 Token Exchange (OBO) and In-Task Authorization Code for A2A Protocol-Based Agents.

Pattern 1: OAuth 2.0 Token Exchange (OBO)

Use case	Service-to-service authentication with single IdP; transparent token exchange
Characteristics	Mechanism: Implements RFC 8693 at gateway layer Transparent: No user interaction required Token transformation: Preserves user identity (sub) while changing authorized party (azp) and audience (aud) Low-latency: Minimal overhead for token exchange
Policy	OAuth 2.0 OBO Credential Injection Policy

Pattern 2: In-Task Authorization Code for A2A Protocol-Based Agents

Use case	For A2A protocol-based agents only requiring step-up MFA, cross-organization access, and high-risk operations
Characteristics	Mechanism: Challenges client with WWW-Authenticate header, validates secondary token from different IdP Step-up MFA: Enforces stronger authentication for high-risk operations
Policy	In-Task Authorization Code Policy

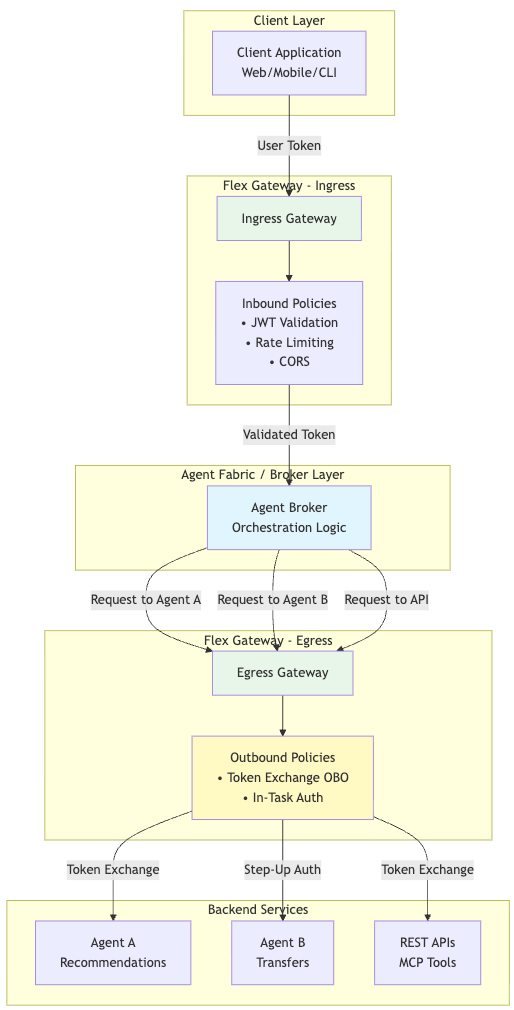

Architecture overview

Flex Gateway’s outbound authentication policies are the optimal interception point for token exchange and step-up authentication because they:

Intercept at the right layer: Policies execute after inbound validation but before backend calls, enabling transparent token transformation
Have centralized security: Authentication logic enforced at gateway layer, not scattered across services
Face zero backend changes: Services receive properly scoped tokens without code modifications

How outbound policies work

Request Flow:

Client → ingress gateway: Client sends request with user token
Inbound validation: Gateway validates user token (signature, expiration, audience)
Broker processing: Agent broker receives validated request, determines which downstream services to call
Outbound interception: Before calling downstream services, outbound policy intercepts the request
Token transformation:
- OAuth2 OBO Credential Injection Policy: Exchanges incoming bearer tokens using the OAuth 2.0 Token Exchange (RFC 8693) or Microsoft Entra ID On-Behalf-Of protocols
- A2A In-Task Authorization Code Policy: Ensures secondary credentials are present for in-task authentication using OAuth 2.0 Authorization Code flow
Backend call: Service receives properly scoped token with preserved user identity
Response: Service response flows back through gateway to client

Token exchange between services

When services call other services (service-to-service communication), the outbound policy ensures proper token scoping:

User Token (aud: broker)
  → Broker receives request
    → Calls Agent A
      → Outbound Policy: Exchange for Agent A token (aud: agent-a, sub: user-id)
    → Calls Agent B
      → Outbound Policy: Exchange for Agent B token (aud: agent-b, sub: user-id)
    → Calls API
      → Outbound Policy: Exchange for API token (aud: api, sub: user-id)

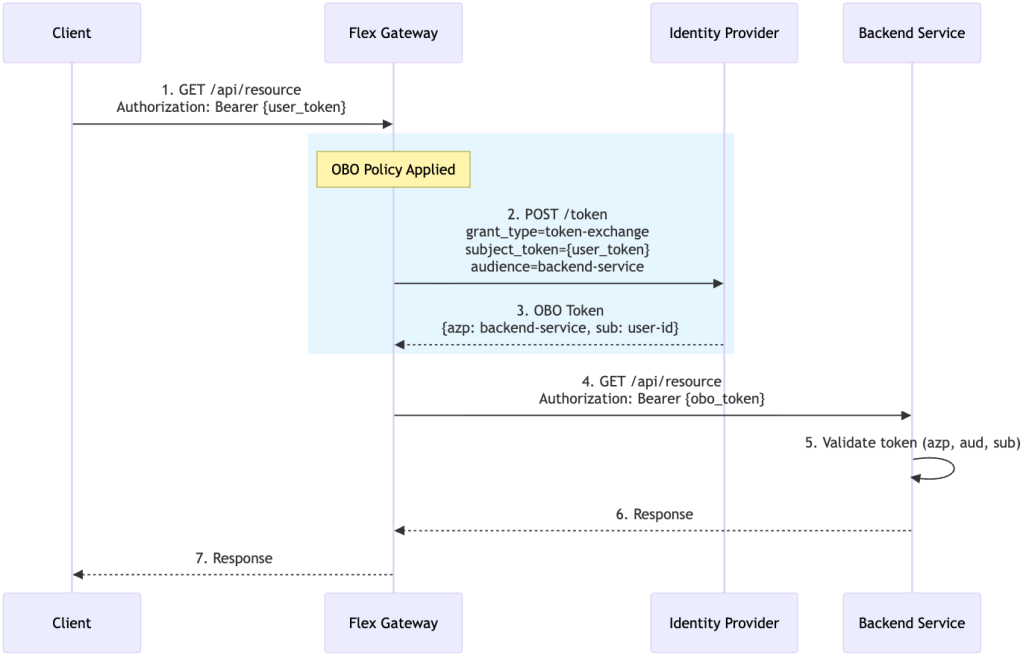

Pattern 1: OAuth 2.0 Token Exchange (On-Behalf-Of)

What it does	OAuth 2.0 Token Exchange (RFC 8693) enables the gateway to exchange an incoming user token for a service-specific token while preserving user identity. The Flex Gateway policy handles this exchange transparently, acting as an OAuth client to the IdP.
Concepts	Subject token: Incoming user token from authorization header Grant type: urn:ietf:params:oauth:grant-type:token-exchange (RFC 8693 standard)Entra: urn:ietf:params:grant-type:jwt-bearer Token transformation: Changes authorized party (azp) and audience (aud) while preserving user identity (sub) Token type: Supports urn:ietf:params:oauth:token-type:access_token
Policy	Outbound Authentication – OAuth 2.0 Token Exchange

User token structure

The user token is issued by the Primary IdP to client:

{
  "iss": "https://idp.example.com",
  "sub": "user-123-unique-id",
  "azp": "web-application",
  "aud": ["service-a", "service-b"],
  "exp": 1705262400,
  "iat": 1705258800,
  "auth_time": 1705258800,
  "jti": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
  "acr": "1",
  "amr": ["pwd"],
  "session_state": "8f7e6d5c-4b3a-2918-7654-321098fedcba",
  "preferred_username": "john.doe",
  "email": "john.doe@example.com",
  "email_verified": true,
  "name": "John Doe",
  "given_name": "John",
  "family_name": "Doe",
  "scope": "openid profile email",
  "sid": "8f7e6d5c-4b3a-2918-7654-321098fedcba",
  "typ": "Bearer"
}

Claim explanations

Claim	Description	Security significance
iss	Issuer – IdP that issued the token	Validates token origin; must match expected IdP
sub	Subject – Unique user identifier	Preserved across all tokens for audit trail
azp	Authorized party – Client that requested token	Changes per service; validates token recipient
aud	Audience – Services token is valid for	Restricts token usage; prevents cross-service attacks
exp	Expiration time (Unix timestamp)	Limits exposure window; shorter for OBO tokens
iat	Issued at time	Helps detect token replay attacks
auth_time	Time user authenticated	Used for session management
jti	JWT ID – Unique token identifier	Enables token revocation and replay detection
acr	Authentication Context Class Reference	Indicates authentication strength (1 = basic, 2 = MFA)
amr	Authentication Methods References	Lists methods used (pwd, mfa, otp, etc.)
scope	OAuth scopes granted	Defines permissions; narrowed in OBO tokens

OBO Token

The OBO Token is issued by Primary IdP for Service A:

{
  "iss": "https://idp.example.com",
  "sub": "user-123-unique-id",
  "azp": "service-a",
  "aud": ["service-a"],
  "exp": 1705259700,
  "iat": 1705258800,
  "auth_time": 1705258800,
  "jti": "b2c3d4e5-f6a7-8901-bcde-f12345678901",
  "acr": "1",
  "amr": ["pwd"],
  "scope": "agent:read openid"
}

Key claim transformations

Claim	User token	OBO Token	Transformation reason
azp	web-application	service-a	Identifies new token recipient
aud	[“service-a”, “service-b”]	[“service-a”]	Restricts to single service
exp	1705262400 (1 hour)	1705259700 (15 min)	Reduces exposure window
scope	openid profile email	data:read openid profile	Service-specific permissions

Why this approach?

Security properties

Operational benefits

Token scoping: Each service receives a token with minimal required permissions (principle of least privilege)

Audience restriction: aud claim prevents token reuse across services

Authorized party validation: azp claim enables services to verify token was issued for them

User context preservation: sub claim maintains audit trail

Centralized policy: No backend code changes required

Zero application changes: Agents/APIs only validate tokens

Consistent security: Policy enforced uniformly across all services

Simplified token management: Gateway handles token lifecycle

Use cases

Scenario	Flow	Benefit
AI agent network	User → Web App → Gateway (OBO) → Orchestrator → Gateway (OBO) → Recommendation Agent	User identity (sub) preserved through entire chain; complete audit trail
Microservices	Mobile App → Gateway (OBO) → Order Service → Gateway (OBO) → Inventory Service	Each service receives scoped token; compromised service cannot access others
Partner API	Partner App → Gateway (OBO) → Partner API → Gateway (OBO) → Internal CRM	Partner receives limited scope; user context maintained for compliance

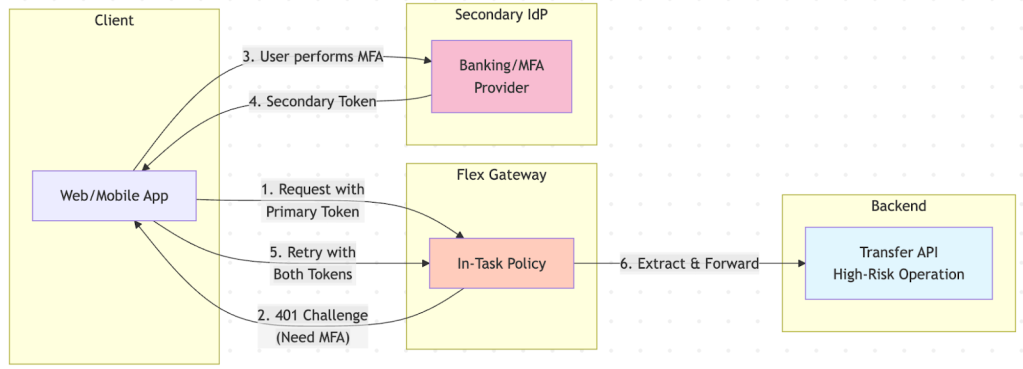

Pattern 2: In-task authentication with secondary IdP

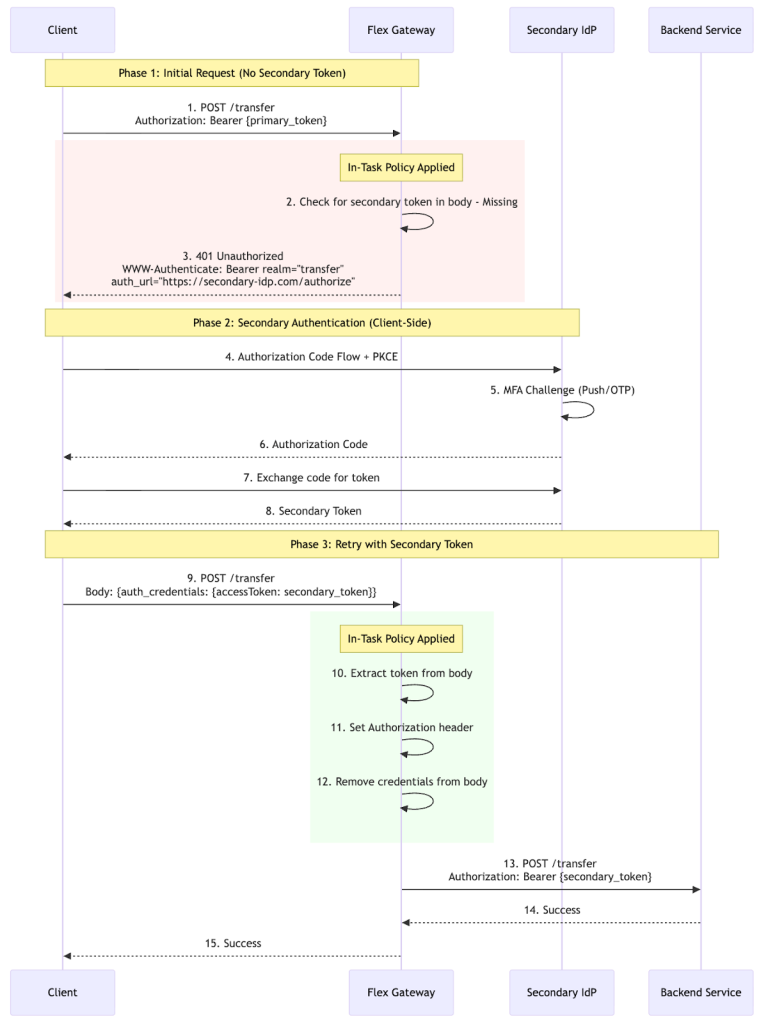

In-Task Authorization Code enables step-up authentication with a secondary identity provider for A2A agentic scenarios. This policy is specifically designed for the A2A Protocol’s In-Task Authentication pattern, where agents pass secondary credentials in the request body using the A2A message format.

When an agent attempts to access a protected resource, the gateway challenges the agent with a WWW-Authenticate challenge, prompting the agent to obtain a secondary token via Authorization Code Flow with PKCE. This policy is designed exclusively for A2A agentic workflows.

The token extraction path (params.message.parts[].data.auth_credentials.accessToken) follows the A2A Protocol message structure.

A2A protocol compliance: Follows A2A In-Task Authentication specification for secondary credentials
WWW-authenticate challenge: Returns auth challenge if no token found in request
Token extraction: Extracts token from A2A message body at params.message.parts[].data.auth_credentials.accessToken
Header injection: Sets Authorization header with Bearer <token> format for upstream services
Credential removal: Removes credentials from body to prevent token leakage

The policy trusts that the agent obtained a valid token through the OAuth2 flow and injects it into the Authorization header. Authentication Context Class Reference (ACR) and Authentication Methods Reference (AMR) enforcement is not performed by the policy itself. These claims should be validated by the upstream service or a separate inbound validation policy if required.

Token structure

Secondary token:

{
  "iss": "https://secondary-idp.example.com",
  "sub": "user-secondary-id",
  "azp": "sensitive-service",
  "aud": ["sensitive-service"],
  "acr": "urn:okta:loa:2fa:any",
  "amr": ["pwd", "mfa", "otp"],
  "scope": "transfer:execute openid"
}

Claims:

iss: Different issuer (IdP1 vs IdP2)
sub: User identity from secondary IdP
aud: Target service audience

While tokens may contain acr and amr claims indicating authentication strength, the In-Task policy does not validate these claims. If ACR/AMR enforcement is required, implement validation in the upstream service or use a separate inbound policy.

Use cases

Scenario	Description	Compliance benefit
High-value financial transactions	User transfers $50K+ → Gateway challenges for MFA → User completes banking IdP auth → Transfer proceeds	PSD2 SCA compliance; dual authentication proof
Cross-organization B2B access	Partner authenticates with their IdP → Accesses your resources → Must also authenticate with your IdP	Both organizations maintain authentication control
Risk-based step-up	Low-risk (read): primary token only. High-risk (write/PII): In-Task policy challenges for secondary token	Selective MFA enforcement; reduced user friction

Pattern selection guide

Criteria	Use OBO	Use In-Task
Identity providers	Single IdP	Multiple IdPs required
User interaction	None (transparent)	Required (step-up MFA)
Latency requirements	Low latency critical	User interaction acceptable
Trust domain	Same organization	Cross-organization (B2B)
Compliance	Standard audit trails	Explicit MFA proof required (PSD2, FFIEC)
Throughput	High throughput scenarios	Lower throughput acceptable

Implementation guide

Let’s go over the prerequisites you’ll need for implementation.

Identity provider

OBO Pattern	In-Task Pattern
OAuth 2.0 Token Exchange (RFC 8693) grant type Token endpoint accepting grant_type=urn:ietf:params:oauth:grant-type:token-exchange Client credentials authentication (confidential client) JWKS endpoint (RFC 7517) for public key distribution Support for subject_token, audience, and scope parameters Ability to configure token exchange permissions (which clients can exchange for which audiences)	OpenID Connect Core 1.0 with Authorization Code FlowPKCE (RFC 7636) for enhanced security

Supported identity providers

Provider	OBO support	In-Task support	Notes
Keycloak 18+	Native	Native	Full RFC 8693 support
Okta	Via Token Exchange API	Native	Requires API access token
Azure Entra ID	Native (OBO flow)	Via Conditional Access	Use microsoft-entra-obo flow
Auth0	Via Token Exchange	Native	Requires M2M application
Ping Identity	Native	Native	PingFederate 10.3+
ForgeRock	Native	Native	AM 7.0+

MuleSoft Flex Gateway:

Version 1.11.4 or higher
CH2 Runtime
Access to API Manager

Backend services:

JWT validation capability
JWKS endpoint access for signature verification
TLS/HTTPS support
Ability to extract and validate claims: sub, iss, aud, azp, exp, nbf

Identity Provider configuration

IdP configuration is provider-specific. Refer to your IdP’s documentation for detailed setup instructions:

OAuth 2.0 Token Exchange (OBO Pattern)	Keycloak Token Exchange Okta Token Exchange Azure Entra ID On-Behalf-Of Flow Auth0 Token Exchange
In-Task Authorization Code (Step-Up MFA)	Okta MFA and Step-Up Authentication Azure Entra ID Conditional Access Auth0 Step-Up Authentication Keycloak Authentication Flows
For backend token validation patterns and best practices	JWT Validation Best Practices OAuth 2.0 Security Best Current Practice

Flex Gateway policy configuration

Parameter	Description
Token Exchange Flow	Token exchange flow: OAuth2 Token Exchange (RFC 8693) or Microsoft Entra OBO
Client ID	The OAuth2 client ID for token exchange
Client secret	The OAuth2 client secret for token exchange
Token endpoint	The OAuth2 token endpoint URL for token exchange
Scope	OAuth scope to request. Optional for OAuth2 Token Exchange. Required for Microsoft Entra OBO (e.g. ‘api://downstream-client-id/.default’)
Timeout (optional)	Request timeout in milliseconds
Target value	The target audience URI or resource URI for the exchanged token. Required for OAuth2 Token Exchange flow
Target type	Parameter type for specifying the target service. Required for OAuth2 Token Exchange flow Supported values: Audience (logical identifier of the target service) or Resource (physical URI of the target resource)

Notes:

The policy automatically handles RFC 8693 token exchange protocol
Incoming tokens are extracted from the authorization header by default
Exchanged tokens replace the original token in outbound requests

In-Task Authorization Code policy configuration

Parameter	Description
Secondary auth provider	Name of the IdP provider. Used for informational purposes in the authentication card
Authorization endpoint	OAuth2 authorization endpoint URL. Required for generating the authentication challenge
Token endpoint	OAuth2 token endpoint URL. Required for generating the authentication challenge
Scopes	Space or comma separated list of OAuth2 scopes required for step-up authentication
Redirect URI	OAuth2 redirects URI that the client will use in the authorization flow
Response type	OAuth2 response type. Typically ‘code’ for authorization code flow
Code challenge method	PKCE code challenge method. Typically ‘S256’ for SHA-256
Token audience	OAuth2 token audience. The intended recipient of the token
Body encoding	Encoding format for token request body. Typically ‘form’ for application/x-www-form-urlencoded.
Token timeout	Token timeout in seconds for token requests
Challenge response status code	HTTP status code to return for auth-required challenge responses. Typically 200 to maintain JSON-RPC compatibility

Notes:

The policy supports both primary and secondary tokens independently
When secondary token is missing or invalid, the policy returns a 401 with WWW-Authenticate challenge
The client must complete the authorization code flow with the secondary IdP to obtain the secondary token

Agent Network configuration

MuleSoft Agent Fabric uses AgentNetwork YAML files to define brokers, agents, and their connections. Authentication is configured in the connections section using the same authentication patterns we’ve previously described. Authentication is configured per connection in the connections section. The two new authentication types are OAuth2 Token Exchange (OBO) and In-Task Authorization Code.

OAuth2 Token Exchange (OBO):

connections:
  agent-connection:
    kind: agent
    ref:
      name: my-agent
    spec:
      url: https://api.example.com/agent
      authentication:
        kind: oauth2-obo
        flow: oauth2-token-exchange  # or microsoft-entra-obo
        tokenEndpoint: https://oauth.provider.com/token
        clientId: clientId
        clientSecret: clientSecret
        targetType: audience
        targetValue: https://api.example.com/agents/my-agent
        scope: Read  # Optional for RFC 8693, required for Entra OBO
        timeout: 50000  # Optional, default: 10000ms

In-Task Authorization Code:

connections:
  agent-connection:
    kind: agent
    ref:
      name: my-agent
    spec:
      url: https://api.example.com/agent
      authentication:
        kind: in-task-authorization-code
        secondaryAuthProvider: providerName
        authorizationEndpoint: https://oauth.provider.com/authorize
        tokenEndpoint: https://oauth.provider.com/token
        scopes: Read
        redirectUri: https://oauth.provider.com/callback
        responseType: code
        tokenAudience: https://api.example.com/agents/my-agent
        codeChallengeMethod: S256
        bodyEncoding: form
        challengeResponseStatusCode: 200  # Optional, default: 200
        tokenTimeout: 300  # Optional, default: 300s

To propagate headers from broker to agents, configure headersToPropagate in the broker’s links section:

brokers:
  my-broker:
    spec:
      links:
        - agent:
            ref:
              name: agent-without-auth
        - agent:
            ref:
              name: agent-with-auth
            headersToPropagate: [Authorization, custom-header]
        - agent:
            ref:
              name: another-agent
            headersToPropagate: [Authorization]

Only headers listed in headersToPropagate are forwarded to the agent. This enables fine-grained control over which agents receive authentication tokens.

Complete example:


schemaVersion: 1.0.0
label: Employee Onboarding Network

brokers:
  employee-onboarding-broker:
    spec:
      links:
        - agent:
            ref:
              name: hr-agent
        - agent:
            ref:
              name: badging-agent
            headersToPropagate: [Authorization]
        - agent:
            ref:
              name: transfer-agent
            headersToPropagate: [Authorization]

agents:
  hr-agent:
    label: HR System Agent
  badging-agent:
    label: Badging Agent
  transfer-agent:
    label: Transfer Agent

connections:
  hr-agent-connection:
    kind: agent
    ref:
      name: hr-agent
    spec:
      url: https://hr-agent.example.com/

  badging-agent-connection:
    kind: agent
    ref:
      name: badging-agent
    spec:
      url: https://badge-agent.example.com/
      authentication:
        kind: oauth2-obo
        flow: oauth2-token-exchange
        tokenEndpoint: https://oauth.provider.com/token
        clientId: badging-client
        clientSecret: badging-secret
        targetType: audience
        targetValue: https://api.example.com/agents/badging
        scope: Read
        timeout: 50000

  transfer-agent-connection:
    kind: agent
    ref:
      name: transfer-agent
    spec:
      url: https://transfer-agent.example.com/
      authentication:
        kind: in-task-authorization-code
        secondaryAuthProvider: bankingIdP
        authorizationEndpoint: https://bank.provider.com/authorize
        tokenEndpoint: https://bank.provider.com/token
        scopes: transfer:execute
        redirectUri: https://oauth.provider.com/callback
        responseType: code
        tokenAudience: https://api.example.com/agents/transfer
        codeChallengeMethod: S256
        bodyEncoding: form
        challengeResponseStatusCode: 200
        tokenTimeout: 300

Achieving secure identity propagation

Secure identity propagation is foundational to building trusted, compliant, and scalable multi-service architectures. OAuth 2.0 Token Exchange (OBO) and In-Task Authorization Code address the core challenges of maintaining user context, enforcing least privilege, and meeting regulatory requirements across service boundaries.

Gateway-enforced security: By implementing authentication at the Flex Gateway layer, organizations achieve consistent security enforcement without modifying backend services
User context preservation: Both patterns maintain the original user identity (sub claim) through all service interactions, enabling complete audit trails and user-specific authorization
Pattern selection: Choose OBO for transparent, low-latency service-to-service calls within a single trust domain. Choose In-Task Authorization Code when step-up MFA, multi-IdP scenarios, or explicit user consent is required
Agent Fabric integration: The oauth2-obo and in-task-authorization-code authentication types in AgentNetwork YAML provide seamless integration with existing Agent Fabric deployments
Compliance-ready: These patterns support regulatory requirements including PSD2 SCA, FFIEC, HIPAA, and GDPR by providing verifiable authentication context and comprehensive audit capabilities

For implementation support, refer to the MuleSoft Flex Gateway documentation and Agent Fabric project files documentation.

Trusted Agent Identity: Identity Propagation in MuleSoft Agent Fabric

Share post

OAuth 2.0 Token Exchange and In-Task Authorization Code patterns

The challenge: Identity in multi-service architectures

Where traditional approaches fail

Passing user tokens directly (Security risk)

Service accounts only (No user context)

Frontend-managed token exchange

Solutions for these approaches

Pattern 1: OAuth 2.0 Token Exchange (OBO)

Pattern 2: In-Task Authorization Code for A2A Protocol-Based Agents

Architecture overview

How outbound policies work

Token exchange between services

Pattern 1: OAuth 2.0 Token Exchange (On-Behalf-Of)

User token structure

Claim explanations

OBO Token

Key claim transformations

Why this approach?

Use cases

Pattern 2: In-task authentication with secondary IdP

Token structure

Use cases

Pattern selection guide

Implementation guide

Identity provider

Supported identity providers

Identity Provider configuration

Flex Gateway policy configuration

In-Task Authorization Code policy configuration

Agent Network configuration

Achieving secure identity propagation

Related articles

Architecting the Agentic Developer Experience With MuleSoft Vibes

Automate Hybrid Deployment of Mule Applications Using Declarative CI/CD Tools

Using External Secret Managers With Runtime Fabric

Newsletter

You have been redirected
